12-leads digital interpretive computer-based 12 channels ECG

cod. ECG-2000

12-leads digital interpretive computer-based
12 channels ECG

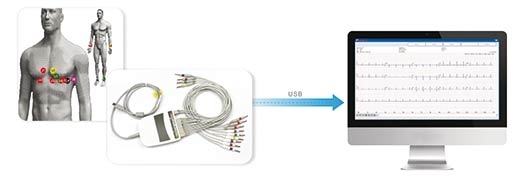

ECG-2000 is a computer-based digital electrocardiograph, suitable for Microsoft Windows operating systems. Compared to a traditional ECG, it allows using a personal computer to acquire, analyze, print and archive the ECG examinations, through a dedicated software. ECG-2000 has an instantaneous 12 leads acquisition, but can become a 15-leads device by connecting the precordial additional leads. The analysis software allows evaluating the R-R interval, the arrhythmia cases, the Cabrera derivations and, by choice, a simple or detailed measurement and interpretation report. The ECG can be analysed according to Minnesota codes or through CSE and AHA databases. The VCG analysis system provides further benefits for ventricular and right atrium hypertrophy diagnosis, conduction block, myocardial infarction, coronary artery VBI and pre-excitation syndrome. Exclusive ECG analysis module with independent and interchangeable leads, with possibility of the examination control, printing and screen freezing. A particular function helps to detect and analyze the heartbeats stimulated by a Pacemaker, during automatic recording. For advanced analysis, it evaluates the ventricular late potentials, the hart rate variability, the high frequency ECG spectral analysis, the heart rate turbolence and the QT dispersion (QTd). Maximum data storage, taking advantage of the computer hard disc. Onscreen operation guide to check the ECG procedure. Voice reminder and visual alarming for leadoff electrodes.
